Your first org audit¶
Find out what Terraform you have, which repos are in the worst shape and why, and who owns them. By the end you will have every repo ranked by hygiene, the specific problems behind each score, and a spreadsheet to share.
Use this when you inherit an estate, before a migration or a reorg, or as a regular health check. It needs no changes to any repo, nothing runs Terraform, and nothing touches state or cloud credentials.
1. Scan the repos¶
To follow along without your own org, scan six public repos. scan takes GitHub owner/name arguments and shallow-clones only their Terraform files, several at once:
$ tfmetrics scan kubernetes/k8s.io alphagov/govuk-infrastructure \
ministryofjustice/cloud-platform-infrastructure cisagov/cool-accounts \
terraform-aws-modules/terraform-aws-eks 18F/cg-provision
scanned cisagov/cool-accounts: 9 modules -> facts/cisagov__cool-accounts.json
scanned terraform-aws-modules/terraform-aws-eks: 8 modules -> facts/terraform-aws-modules__terraform-aws-eks.json
scanned ministryofjustice/cloud-platform-infrastructure: 17 modules -> facts/ministryofjustice__cloud-platform-infrastructure.json
scanned alphagov/govuk-infrastructure: 49 modules -> facts/alphagov__govuk-infrastructure.json
scanned 18F/cg-provision: 82 modules -> facts/18F__cg-provision.json
scanned kubernetes/k8s.io: 97 modules -> facts/kubernetes__k8s.io.json
Each repo gets one facts file: everything tfmetrics learned, as JSON. Every later step reads these files, so you scan once and ask as many questions as you like.
For your own org, let org find the repos. Check what a filter selects before anything is cloned:
$ export GITHUB_TOKEN=... # read access to the org's repos
$ tfmetrics org --org acme --topic terraform --dry-run
$ tfmetrics org --org acme --topic terraform

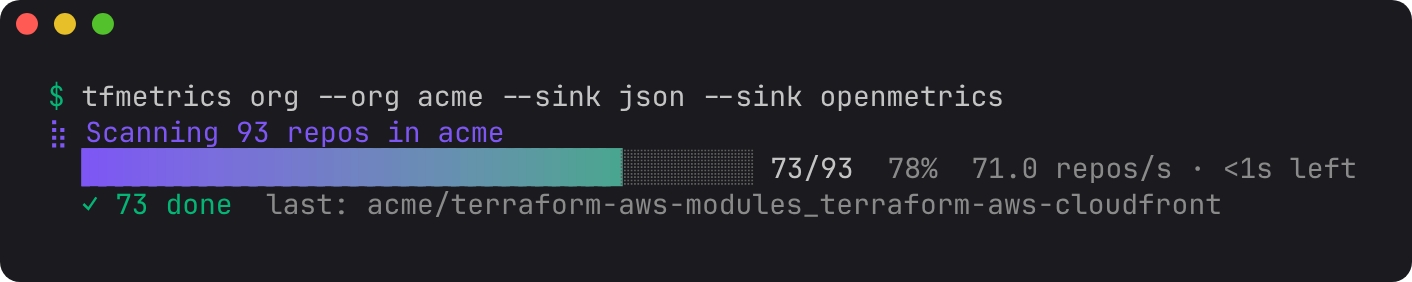

On a terminal, org shows its progress as it goes; in CI it prints one line per repo instead.
2. Rank the repos¶
aggregate turns the facts into numbers. The json sink is easy to query with jq; the csv sink is for the spreadsheet in step 5. Leave out --offline so tfmetrics also looks up how far behind each module and provider is:
$ tfmetrics aggregate facts/ --sink json --sink csv
warning: version lookup for app.terraform.io/govuk/infrastructure-sensitive/govuk//modules/wafs: 401 Unauthorized: ...
aggregated 6 repos (6 with Terraform) into 1316 series
The warning is a private registry tfmetrics has no token for. It leaves that one module's drift out and carries on.
Every repo has a hygiene score from 0 to 100. Lowest first:
$ jq -r '.series[] | select(.name == "tf_hygiene_score") | "\(.value)\t\(.labels.repo)"' \
metrics/metrics.json | sort -n
66 alphagov/govuk-infrastructure
70 cisagov/cool-accounts
72.6 18F/cg-provision
81.9 kubernetes/k8s.io
95.2 ministryofjustice/cloud-platform-infrastructure
100 terraform-aws-modules/terraform-aws-eks
The score is a weighted mix of six checks: pinned remote modules (weight 30), described variables and outputs, provider version constraints, required_version on roots, typed variables, and clean parses (15 or 10 each). The metrics catalog has the formula, and hygiene.weights changes it.
3. Find out why a repo scores low¶
explain shows the checks behind one repo's score:
$ tfmetrics explain facts/cisagov__cool-accounts.json
cisagov/cool-accounts @ c151add0c170
owners: dav3r,felddy,jsf9k,mcdonnnj
modules 9 (9 root, 0 child)
resources 118 declared, 75 data sources
module calls 46 (46 remote unpinned)
outdated 0 (0 major, 0 minor, 0 patch)
lines 5720
parse errors 0
hygiene score 70.0 / 100
Remote module calls pinned 0/46 weight 30
Variables and outputs described 186/186 weight 15
Providers with a version constraint 9/9 weight 15
Roots with required_version 9/9 weight 15
Variables with a type 145/145 weight 15
Modules that parse cleanly 9/9 weight 10
remote module calls
ADDRESS KIND VERSION PINNED LATEST BEHIND IN
github.com/cisagov/disable-inactive-iam-users-tf-module git - none - - audit
github.com/cisagov/disable-inactive-iam-users-tf-module git - none - - dns
...
This repo is careful everywhere except one thing: none of its 46 module calls pins a version, so every terraform init takes whatever those modules' default branches hold that day. That one check is worth 30 points. Pinning the calls, with ?ref=v1.2.0 on a git source, takes the repo from 70 to 100. It also explains the empty LATEST and BEHIND columns: a call with no version has nothing to measure.
In a repo that does pin its modules, those columns show how far behind each call is: its latest release, and how many major, minor and patch releases have come out since the version it uses. The outdated line counts the calls missing each kind of release.
On a terminal, explain draws the report with tables, a score bar and colors. Here it is for a repo with pinned modules, where red marks the calls missing a major release:
4. Find the biggest problems across all repos¶
Rankings tell you where to look; the individual metrics tell you what to fix. A few questions worth asking every audit:
Which repos have the most unpinned module calls?
$ jq -r '[.series[] | select(.name == "tf_module_calls_unpinned")] | group_by(.labels.repo)
| map("\(map(.value) | add)\t\(.[0].labels.repo)") | .[]' metrics/metrics.json | sort -rn
118 alphagov/govuk-infrastructure
46 cisagov/cool-accounts
2 kubernetes/k8s.io
0 terraform-aws-modules/terraform-aws-eks
0 ministryofjustice/cloud-platform-infrastructure
Which module calls are furthest behind their latest release?
$ jq -r '.series[] | select(.name == "tf_module_versions_behind")
| "\(.value)\t\(.labels.repo)\t\(.labels.address)"' metrics/metrics.json | sort -rn | head -4
122 ministryofjustice/cloud-platform-infrastructure registry.terraform.io/terraform-aws-modules/eks/aws
78 kubernetes/k8s.io registry.terraform.io/terraform-aws-modules/eks/aws
43 ministryofjustice/cloud-platform-infrastructure github.com/ministryofjustice/cloud-platform-terraform-monitoring
32 ministryofjustice/cloud-platform-infrastructure registry.terraform.io/terraform-aws-modules/vpc/aws
The value counts major.minor release lines between the version a call uses and the latest, so 122 means a long way behind. Run a module upgrade campaign picks up from here, and Keep providers and Terraform current does the same for providers.
How does each owner's Terraform score?
Owners come from each repo's CODEOWNERS file, a custom property, or a topic (owners decides which):
$ jq -r '[.series[] | select(.name == "tf_hygiene_score")] | group_by(.labels.owner)
| map({owner: .[0].labels.owner, repos: length, score: ((map(.value) | add) / length * 10 | round / 10)})
| sort_by(.score) | .[] | "\(.score)\t\(.repos)\t\(.owner)"' metrics/metrics.json
66 1 alphagov/gov-uk-platform-engineering,alphagov/govuk-data-engineering,alphagov/national-data-library
70 1 dav3r,felddy,jsf9k,mcdonnnj
72.6 1 cloud-gov/platform-ops
91 2 unowned
95.2 1 ministryofjustice/WebOps
unowned repos have no owner tfmetrics could find. Giving them one is often the first fix an audit turns up.
5. Share the results¶
The csv sink wrote metrics/modules.csv (one row per module directory) and metrics/module_calls.csv (one row per module call). Open them in a spreadsheet to sort and filter, or ask them more questions. For example, the root modules that do not say which Terraform version they need:
$ python3 -c "
import csv
rows = [r for r in csv.DictReader(open('metrics/modules.csv'))
if r['kind'] == 'root' and r['required_version'] == '']
print(len(rows), 'roots without required_version')"
14 roots without required_version
For a written report per repo, add the markdown sink, and paste its output into a wiki page or an issue for each owner.
Next steps¶
- Repeat the audit every night and watch the numbers move: Nightly org scan and Dashboards and trends.
- Fix the drift you found: Run a module upgrade campaign.
- Stop new problems arriving: Guardrails for pull requests.
