Reading layers¶

muscles layers list IMAGE is the overview: one row per layer, bottom (the base image) to top. muscles changes list IMAGE is the detail: the paths each layer touched.

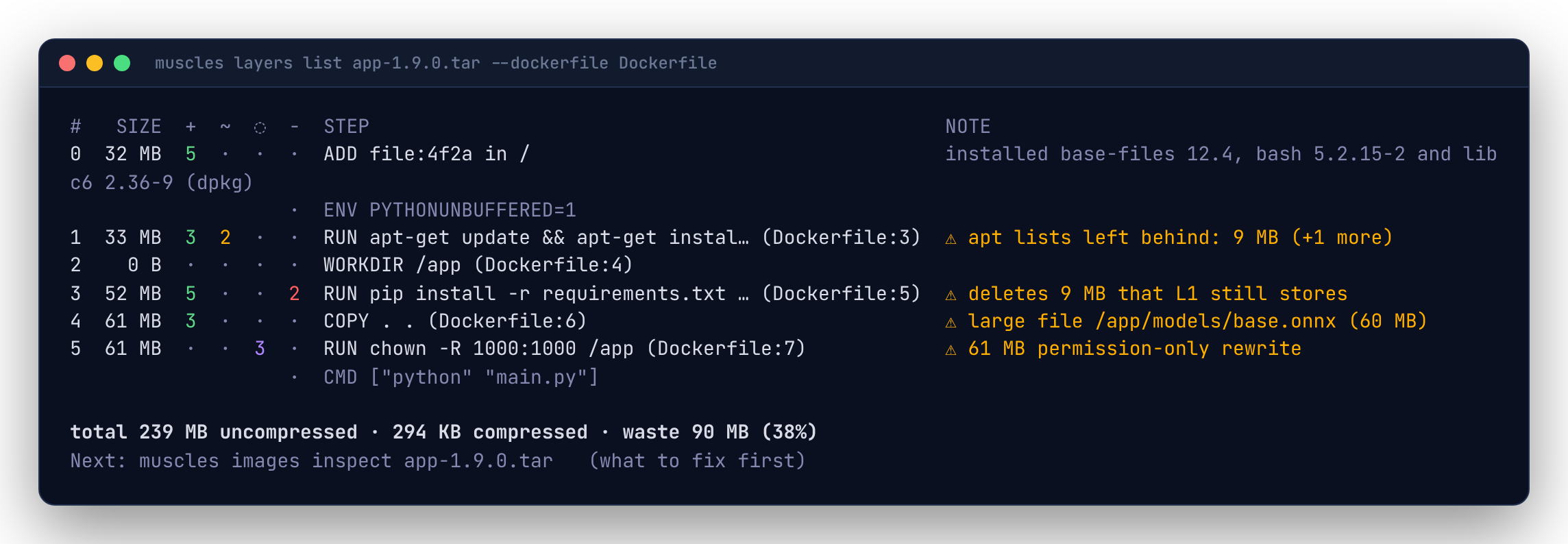

muscles layers list

Layers and steps¶

A Dockerfile instruction that changes the filesystem (RUN, COPY, ADD, FROM's base layers) makes a layer. Instructions that only change metadata (ENV, LABEL, WORKDIR without new files, CMD, ENTRYPOINT, USER, EXPOSE) don't; muscles shows them dimmed between layers so the whole Dockerfile reads in order.

The STEP column comes from the image config's build history. muscles cleans it up so it reads like the Dockerfile line: /bin/sh -c #(nop) ENV A=1 becomes ENV A=1, and BuildKit's RUN |2 A=1 B=2 /bin/sh -c make # buildkit becomes RUN make. A base image's own steps show as written by its builder (for example # debian.sh ...).

Some builders don't record history. Then STEP shows ?, and everything else still works.

Dockerfile lines¶

Pass the Dockerfile the image was built from and each step shows its line:

muscles layers list app:dev --dockerfile Dockerfile

3  140 MB  4  ·  ·  2  RUN pip install -r requirements.txt (Dockerfile:9)  installed numpy 2.1.0, pandas 2.2.3 and 3 more (pip)

muscles matches steps to the last build stage's instructions from the top layer down, ignoring flags like --mount and --chown, so the base image's layers stay unmatched. A step that matches no line (the Dockerfile changed since the build) just shows no line. Set dockerfile: Dockerfile in .muscles.yaml to always use it.

The four kinds of change¶

Each tar entry in a layer is compared with the filesystem built from all the layers below it:

Marker	Type	Meaning
`+`	added	The path didn't exist below.
`~`	modified	The path existed below with different contents, link target or type. The old copy is still stored in its layer.
`◌`	meta	The same contents stored again; only permissions, owner or timestamps changed. The whole file is stored twice.
`-`	deleted	A whiteout removed the path (or an opaque whiteout removed everything below a directory). The size is what disappeared from the filesystem; the bytes are still in the layer that stored them.

Counts in layers list are files, symlinks and other non-directory entries. A directory that's declared again in a later layer (tar files repeat parent directories) is not a change.

Notes¶

The NOTE column says what a layer did: the packages it installed, upgraded or removed, read from the dpkg (Debian, Ubuntu), apk (Alpine), rpm (Fedora, RHEL and UBI, Rocky, Alma, Amazon Linux, openSUSE) and pip package databases (installed curl 7.88.1 and git 2.39.5 (dpkg)), or else where most of its bytes went (mostly /usr/local/lib/python3.12/site-packages (151 MB)). Or a warning:

Note	What it means	Usual fix
`apt lists left behind: 12 MB`	A package manager cache is in the layer. muscles knows apt, apk, yum, dnf, pip, npm, yarn and the Go build cache.	Clean it in the same `RUN`: `apt-get install ... && rm -rf /var/lib/apt/lists/*`, `pip install --no-cache-dir`, or a cache mount.
`deletes 12 MB that L1 still stores`	A deletion that frees nothing: the bytes are in an earlier layer.	Delete in the layer that created the files.
`96 MB permission-only rewrite`	Files stored again just to change owner or mode.	`COPY --chown=app:app`, `COPY --chmod`, or set ownership in the layer that creates the files.
`replaces 40 MB that L0 still stores`	A layer overwrote at least `warn.overwrite` (10 MB) of earlier layers' files; both copies are stored.	Install the final version once, or start from a base image that already has it.
`large file /app/model.bin (210 MB)`	A single file at least `warn.large_file` (50 MB).	Worth a look; maybe it belongs in a volume or a separate image.

When a layer has several warnings, the table shows the first and (+N more); --json has them all, each with its fix. Thresholds are settings: see Configuration. For the fixes ranked by what they save, run muscles IMAGE.

Looking inside a layer¶

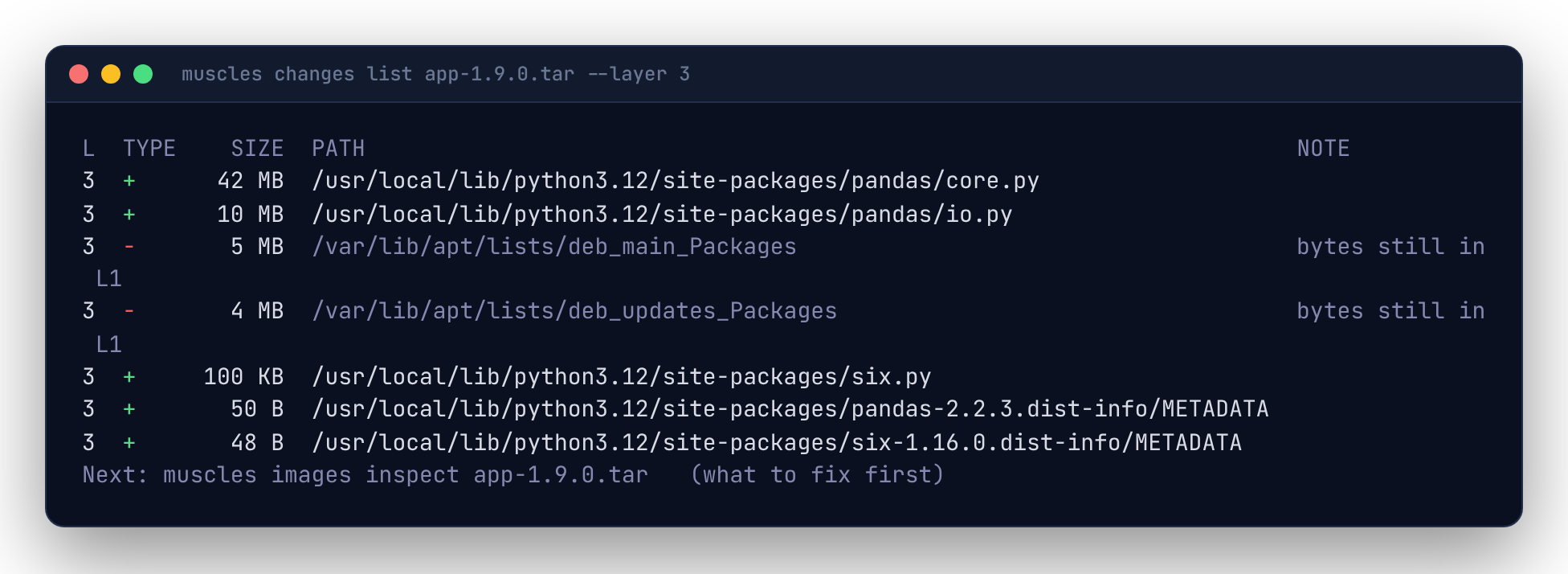

muscles changes list app:dev --layer 3

muscles changes list

Rows are sorted by size, largest first. To keep the list readable, muscles rolls up a directory into one row when everything below it changed the same way (same type, same previous layer), opening the biggest directories first until the list fits about --limit rows (30). A rolled-up row ends in / and its note says how many files it holds.

Flag	Effect
`--layer N`	Only layer N. Without it, every layer, with the layer in the first column.
`--type added,deleted`	Only these change types.
`--path /usr/local`	Only paths at or below this one.
`--min-size 1MB`	Only rows at least this big.
`--files`	Every file; no rolling up.
`--limit N`	About how many rows to roll up into, per layer.

The NOTE column says what a change replaced (was 6 MB (L1)), that a rewrite has the same contents as an earlier layer (same contents as L4), or that a deletion's bytes are still stored (bytes still in L1).
